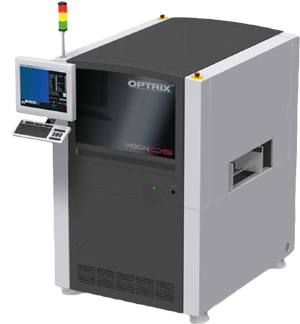

Optrix 3D


High-Speed Inline 3D System for Automated Optical Inspection

OPTRIX 3D automated optical inspection (AOI) systems were developed for the highly accurate measurement of solder paste applications, component placements and chip positions. Exceptional reliability, precision and ease-of-use are the result of this sensor technology. Vision-OS has recognized the importance of AOI especially operating at high production speed, because the longer an error remains unrecognized during the manufacturing process, the more difficult and expensive the troubleshooting process will be.

OPTRIX 3D delivers a comprehensive and flexible AOI solution for your complete SMT-line that can perform solder paste inspections as well as pre- and post-reflow inspections. Thanks to SIPLACE OS’s new patented phase-measuring triangulation technology, the sensor measures not only the x/y dimensions, but also the height for true 3D measurements. The measurement is insensitive to typical surface structure reflectivity and color.

Key benefits at a glance:

• True volume measurement of paste via 3D sensor technology
• Mixed mode: Combine solder paste and placement inspections in a single step (shield assembly)
• Post-reflow detection of tombstones and lifted leads
• Calibrated height measurement range of 10 mm including PCB warpage
• User-friendly – Fast set-up time
• Offline programing with portability across multiple lines
• Component library can be e-mailed when support is needed
• Online statistics include just-in-time detection of error trends for improved first-pass yields and lower rework costs
• Low false alarm rate
